The CT217A series products are made of flame-retardant ABS engineering plastics or PC/ABS alloy plastic materials, combined with epoxy resin casting technology, and have excellent waterproof and moisture-proof properties. They are made of nanocrystalline soft magnetic materials or silicon steel materials, with high precision, good linearity, compact structure, small appearance, easy installation, and are widely used in power distribution systems.

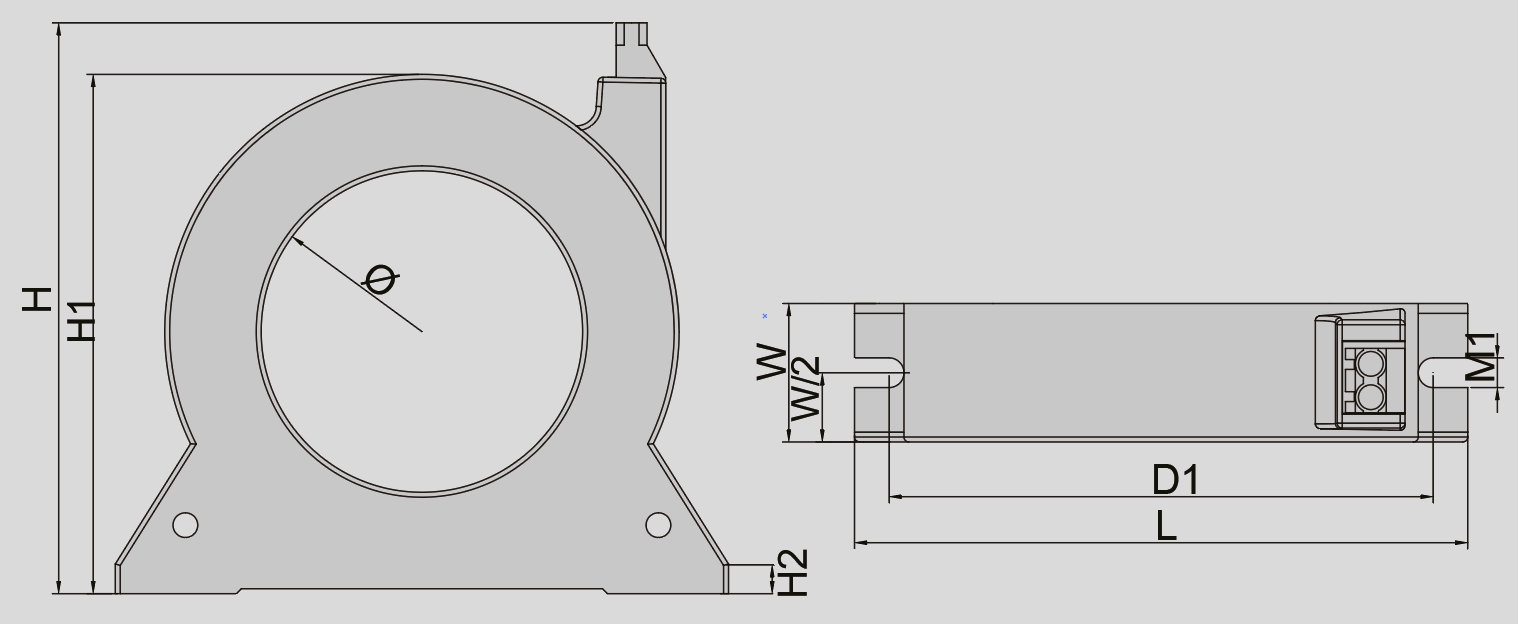

The product is output from the terminal blocks on both sides of the arc-shaped top of the shell, which occupies less height of the product, achieving the purpose of convenient wiring. During installation, it is more convenient to fix the transformer and then wire it. And the thickness of the product is reduced.

*There are many specifications and varieties, and the applicable current range is large.
*Two fixing methods, reliable and flexible fixing methods
*Flexible design, measurable and protective
*High precision: the precision can reach 0.1 level
*High overload multiple, small signal output can reach up to 12 times.
*Strong versatility and good interchangeability

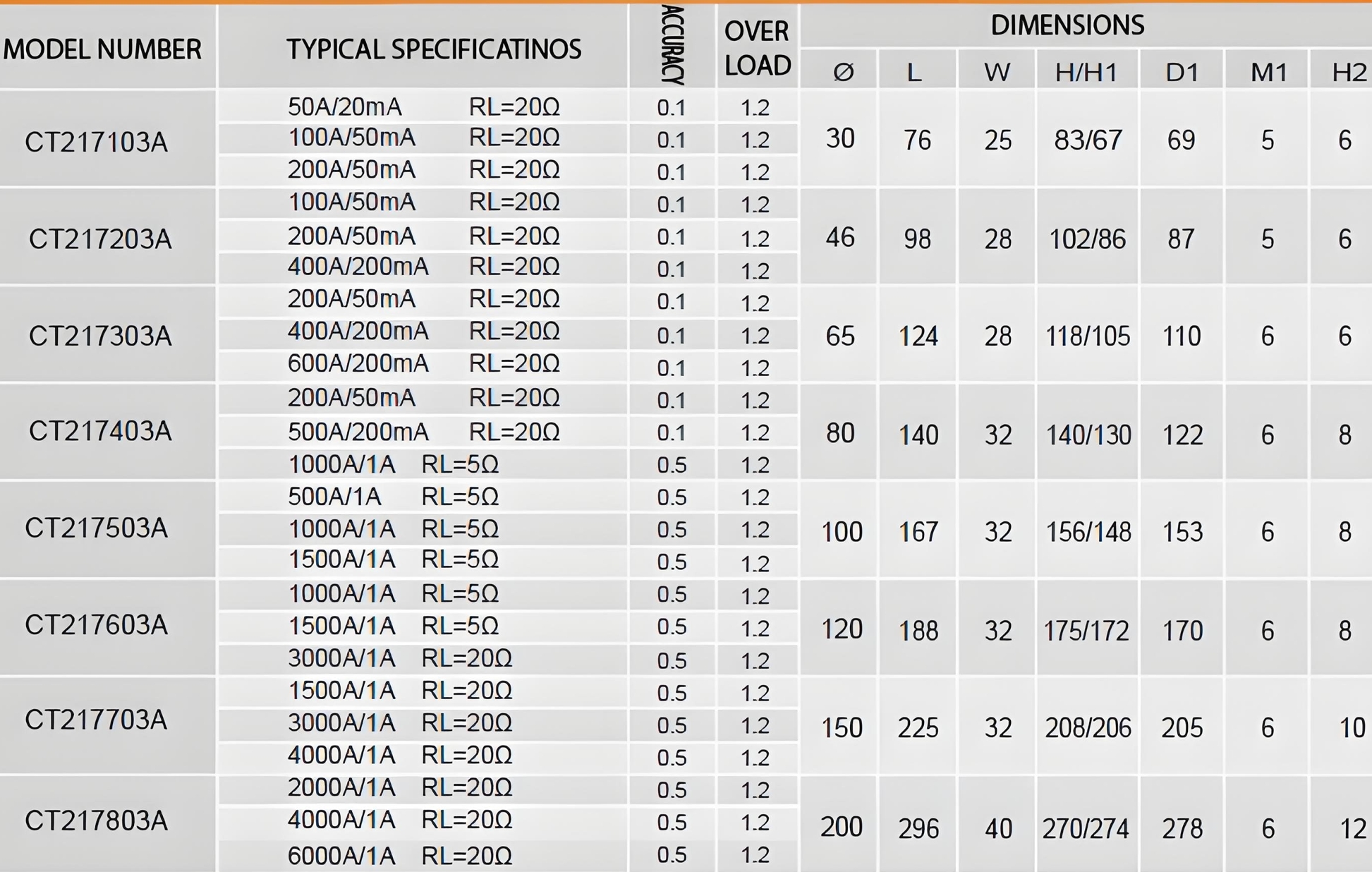

Product Specifications Table
